Electric Actuated Flanged Ball Valves

Type:

V-flow Electric actuated control ball valve

Multi-port180 degree Electric actuated ball valve

Ultra-clean multi-port Electric actuated ball valve

Anti-vacuum multi-port Electric actuated ball valve

Special working condition Electric actuated control ball valve

Electric Actuated Flanged Ball Valves


Actuator: 24VDC | 110VAC | 220VAC

Options: 1. Switching Motor-Driven Actuator (SA) 2.Regulating Actuator

Flanged Ball Valves MD-28

Electric Actuated Flanged Ball Valves

MD-28/E


Specifications:
  • Size: 1/2" ~ 6"(DN15 ~ DN150)
  • End Connection:
    Flanged End (ASME B16.5 CLASS 150/300 DIN2501 PN 16/40)
  • Working Pressure:
    • CLASS 150 / CLASS 300
    • PN 16 / PN 40
  • Seat : PTFE, T10, T15
Flanged Ball Valves MD-52

Electric Actuated Flanged Ball Valves

MD-52/E


Specifications:
  • Size: 1/2" ~ 10"(DN15 ~ DN250)
  • End Connection:
    Flanged End (DIN2501 PN 10/16/25/40)
  • Face to Face : DIN 3202 F4/F5
  • Working Pressure:
    • PN16
    • PN40
  • Seat : PTFE, T10, T15
Flanged Ball Valves MD-52

Electric Actuated Flanged Ball Valves

MD-52/E


Specifications:
  • Size: 1/2" ~ 10"(DN15 ~ DN250)
  • End Connection:
    Flanged End (ANSI B16.5 CLASS 150/300)
  • Face to Face : ANSI B16.10 CLASS 150/300
  • Working Pressure:
    • CLASS 150
    • CLASS 300
  • Seat : PTFE, T10, T15
Flanged Ball Valves MD-62

electric actuated floating forged ball valve

MD-62/E


Specifications:
  • Size: 1/2" ~ 10"(DN15 ~ DN250)
  • End Connection:
    Flanged End
  • Working Pressure:
    • 1/2"~10" CLASS 150
    • 1/2"~6" CLASS 300
    • 1/2"~4" CLASS 600
    • 1/2"~2" CLASS 900
    • 1/2"~2" CLASS 1500
  • Body : A105, F304, F316, LF2
  • Ball : F304, F316
  • Seat : PTFE, RTFE, DELRIN, PEEK
  • Stem : F6a, F304, F316

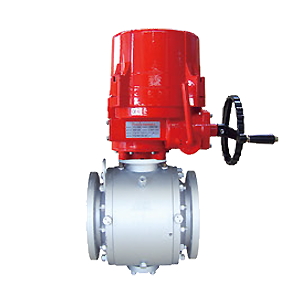

Flanged Ball Valves MD-64FS

electric actuated trunnion-mounted fire safe forged ball valve

MD-64FS/E


Specifications:
  • Size: 1-1/2" ~ 36"(DN40 ~ DN900)
  • End Connection:
    Flanged End
  • Working Pressure:
    • 4"~36" CLASS 150
    • 4"~36" CLASS 300
    • 2"~30" CLASS 600
    • 2"~24" CLASS 900
    • 2"~20" CLASS 1500
    • 1-1/2"~12" Class 2500
  • Body : A105, F304, F316, LF2
  • Ball : F304, F316
  • Seat : PTFE, RTFE, DELRIN, PEEK, PCTFE
  • Stem : F6a, F304, F316
Flanged Ball Valves MD-64Q

electric actuated metal-seated trunnion-mounted forged ball valve

MD-64Q/E


Specifications:
  • Size: 2" ~ 32"(DN50 ~ DN800)
  • End Connection:
    Flanged End / Butt Weld End
  • Working Pressure:
    • 2"~24" CLASS 150
    • 2"~24" CLASS 300
    • 2"~24" CLASS 600
    • 2"~24" CLASS 900
    • 2"~16" CLASS 1500
    • 2"~16" CLASS 2500
  • Design : API 6D

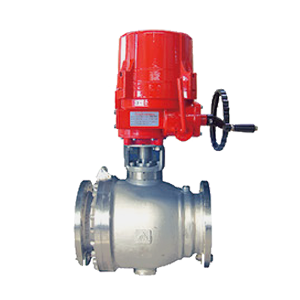

Flanged Ball Valves MD-72

electric actuated trunnion-mounted forged ball valve

MD-72/E


Specifications:
  • Size: 2" ~ 36"(DN50 ~ DN900)
  • End Connection:
    Flanged End / Butt Weld End
  • Face to Face : API 6D / ASME B16.10
  • Test : API 6D/API 598
  • Working Pressure:
    • 4"~36" CLASS 150
    • 4"~36" CLASS 300
    • 2"~30" CLASS 600
    • 2"~24" CLASS 900
  • Body : WCB,CF8,CF8M,LCB
  • Ball : WCB+ENP,F304,F316
  • Seat : PTFE, RTFE, DELRIN, PEEK, PCTFE
  • Stem : F6a, F304, F316
  • Design : API 6D/ASME B16.34/BS5351
