Pneumatic Actuated Three Piece Ball Valve - ON/OFF Type

Type：

V-Flow Pneumatic Control Ball Valve

Vacuum Condition Used Pneumatic Control Ball Valve

Special Working Condition Pneumatic Control Ball Valve

Pneumatic control ball valve

* Optional Accessories For Pneumatic Control: 1. Actuator (Double Acting/Spring Return) 2. Solenoid Valve 3. Limit switch 4. Positioner 5. Air Filter/Regulator 6. Gear Box

Pneumatic Control Three Piece Ball Valve

V-258 DA / V-258 SR

Specifications:
  • Size: 1/4" ~ 4"(DN8 ~ DN100)
  • End Connections:
    Female Threaded / Butt Weld / Socket Weld End
  • Threaded Type:
    NPT, DIN 259/DIN2999, ISO228, BSPT, BSP
  • Working Pressure(CWP):
    • 1/4"~2" 1000PSI
    • 2-1/2"~4" 800PSI
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box

Pneumatic Control Three Piece Sanitary Ball Valve

V-258TC DA / V-258TC SR

Specifications:
  • Size:1/4" ~ 4"(DN8 ~ DN100)
  • End Connections:
    T-clamp End
  • Working Pressure(CWP):
    • 1/4"~2" 1000PSI
    • 2-1/2"~4" 800PSI
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box

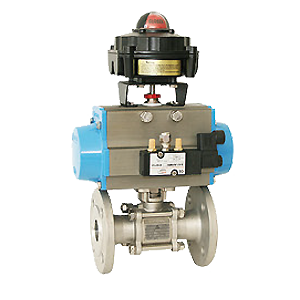

Pneumatic Control Three Piece Flanged Ball Valve

V-258F DA / V-258F SR

Specifications:
  • Size:1/4" ~ 4"(DN8 ~ DN100)
  • End Connections:
    Flanged End
  • Working Pressure(CWP):
    • 1/4"~2" 1000PSI
    • 2-1/2"~4" 800PSI
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box
