Pneumatic Actuated Three Way Ball Valve

Pneumatic Actuated Three Way Ball Valve

* Optional Accessories For Pneumatic Control: 1. Actuator (Double Acting/Spring Return) 2. Solenoid Valve 3. Limit switch 4. Positioner 5. Air Filter/Regulator 6. Gear Box

K-318 L / T port DA / SR

Pneumatic Actuated Three Way Ball Valve

K-318 DA / SR

Specifications:
  • Size: 1/4" ~ 2" (DN8 ~ DN50)
  • End Connection: Threaded
  • Working Pressure: 1000 PSI
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box
K-314 L / T port DA / SR

Pneumatic Actuated Three Way Heavy Duty Ball Valve

K-314 DA / SR

Specifications:
  • Size: 1/2" ~ 3" (DN15 ~ DN80)
  • End Connection: Threaded / Butt Weld End / Socket Weld End
  • Working Pressure: 1000 PSI
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box
KF-307 L/T port DA/SR

Pneumatic Actuated Three Way Flanged Ball Valve

KF-307 DA / SR

Specifications:
  • Size: 1-1/2" ~ 6" (DN40 ~ DN150)
  • End Connection: Flange End
  • Pressure Class:
    • CLASS150 / CLASS300
    • PN16 / PN40
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box

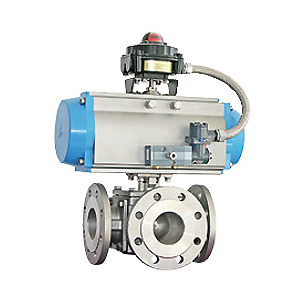

KF-314 L/T port DA / SR

Pneumatic Actuated Three Way Flanged Ball Valve

KF-314 DA / SR

Specifications:
  • Size: 1/2" ~ 6" (DN15 ~ DN150)
  • End Connection: Flange End
  • Pressure Class:
    • CLASS150 / CLASS300
    • PN16 / PN40
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box
