Pneumatic Actuated Triple Offset Butterfly Valves

Material: SS316 / SS304 / SS316L / WCB / Ductile Iron

Pressure: Class 150 / Class 300 / PN 10 / PN 16 / PN 25

Pneumatic Triple Offset Butterfly Valves

* Optional Accessories For Pneumatic Control: 1. Actuator (Double Acting/Spring Return) 2. Solenoid Valve 3. Limit switch 4. Positioner 5. Air Filter/Regulator 6. Gear Box


VF-834A DA/SR

Pneumatic Actuated Triple Offset Butterfly Valves

VF-834A DA /
VF-834A SR


Specifications:
  • Size: 3" ~ 24" (DN80 ~ DN600)
  • End Connection:
    Wafer Type / Lug Type
  • Working Pressure:
    • CLASS 150/300
    • PN 10 / PN 16 / PN 25
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box

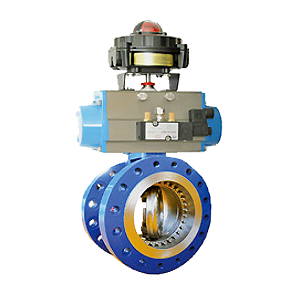

VF-834A DA/SR

Pneumatic Actuated Triple Offset Butterfly Valves - Double Flange Type

VF-834A DA /
VF-834A SR


Specifications:
  • Size: 3" ~ 24" (DN80 ~ DN600)
  • End Connection:
    Double Flange Type
  • Working Pressure:
    • CLASS 150/300
    • PN 10 / PN 16 / PN 25
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box
VF-835 DA/SR

Pneumatic Actuated Metal Seat Triple Offset Butterfly Valves

VF-835 DA / VF-835 SR


Specifications:
  • Size: 4" ~ 80" (DN100 ~ DN2000)
  • End Connection:
    Wafer Type / Lug Type
  • Working Pressure:
    • CLASS 150
    • PN 10 / PN 16 / PN 25
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box
VF-835 DA/SR

Pneumatic Actuated Metal Seat Triple Offset Butterfly Valves - Double Flange Type

VF-835 DA / VF-835 SR


Specifications:
  • Size: 4" ~ 80" (DN100 ~ DN2000)
  • End Connection:
    Double Flange Type
  • Working Pressure:
    • CLASS 150
    • PN 10 / PN 16 / PN 25
  • Accessories:
      1. Actuator(DA/SR)
      2. Solenoid Valve
      3. Limit Switch
      4. Positioner
      5. Air Filter/Regulator
      6. Gear Box
